Heavy Duty Storage Systems
title shap

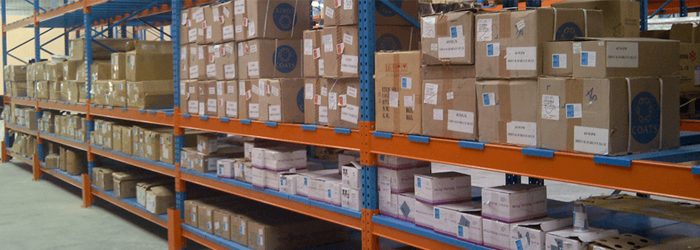

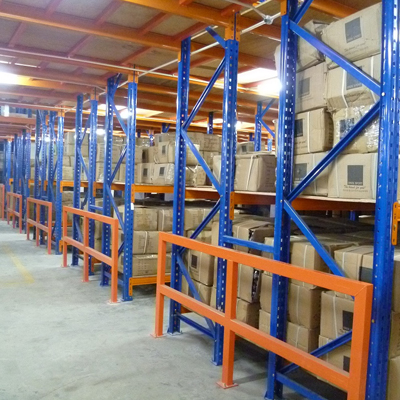

Heavy Duty - Palletised storage systems incorporates various material storing features and benefits.

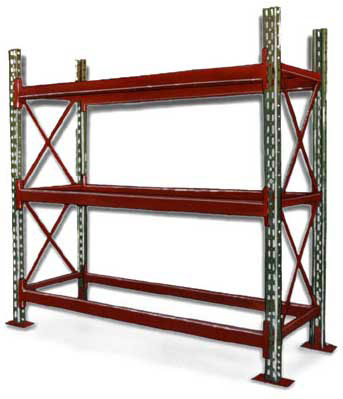

  • The lipped channel uprights and heavy duty horizontal beams are designed for a 1.50 factor of safety on yield stress.
  • Wide range components availability
  • Built in versatility.
  • Easy to erect.


Welfab Heavy Duty components like double lipped channel uprights and horizontal beams can be designed for a maximum loading capacity up to 1500 Kgs. Uniformly distributed load per sq. mt. Per level with a factor of safety of 1.5 in span 3.6 mts. maximum.

Note: Loading capacity of the same section of beams can be increased, by decreasing the span/length of beams.


The finish of all Heavy Duty components is done with Epoxy and Epoxy polyester powder coated with different colour sheds for different components after applying derusting, phosphatysing treatment.

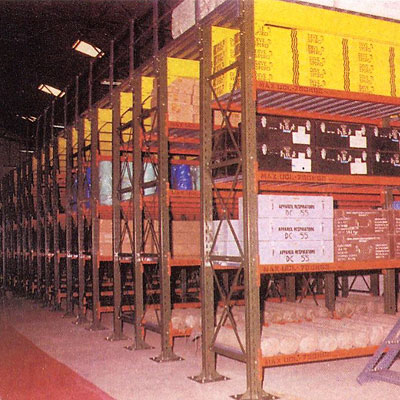

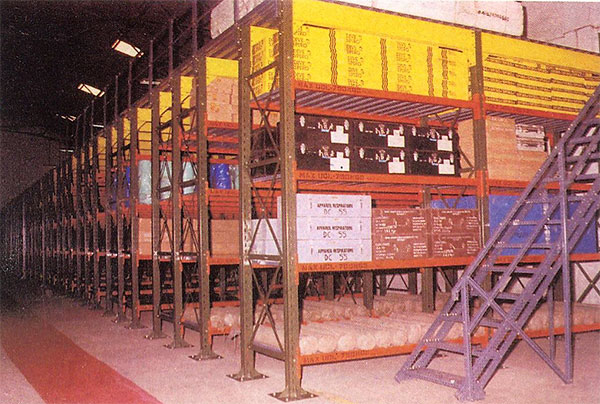

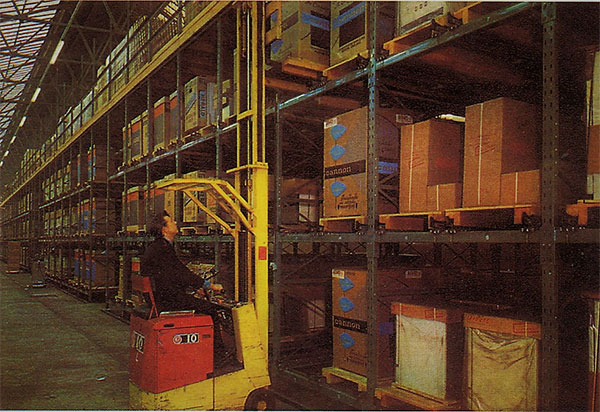

This system is versatile storage system depending upon the use and different types of handling. It can provide you Palletised Racking like Simple Pallet Racks by using forklift, high rise / high density racking by using vertical aisle crane.

Drive in and Drive through Racking by using forklift.

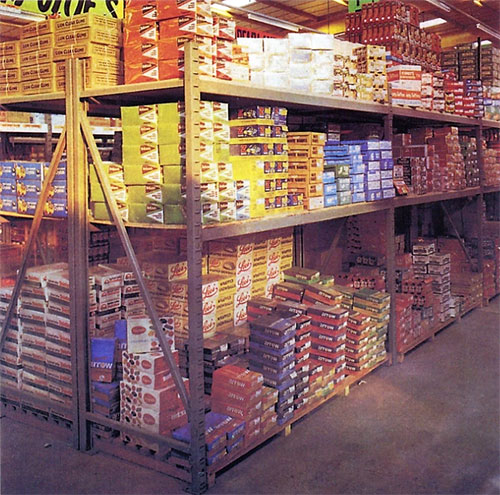

Long Span Racking by using forklifts or manual.

Can be easily assembled on site double your valueable floor space. Very versatile and could be designed to take an unformly distributed load of 1000 Kgs. Per sq. mt.

These racks are used to load heavy items like gears, valves, small pump-sets, motors etc. Ideal for Factory Godowns, Warehouses, Hardware and Automobile shops. (For U.D.L. 150 kg. to 1500 kg. per level).
